Scope of Work
Ultimate Construction was responsible for the installation of approximately 12,000 square feet of Dri-Design .080″ aluminum rainscreen panels installed over Greengirt thermally broken sub-framing with continuous mineral wool insulation.
The scope included highly detailed architectural features, most notably custom “sawtooth” corner conditions, window infill panels, and façade transitions that required exact coordination and layout. All panels were fabricated with unique dimensions, leaving no opportunity for field modification once installation began.
Project Highlights
One of the defining challenges of the SCSU School of Business project was the level of accuracy required across the entire façade. Due to the building’s geometry, no two panels were identical. Long fabrication lead times and the absence of allowable field adjustments meant that accuracy during layout and coordination was critical.
The project site offered virtually no on-site staging or storage space. To accommodate material handling and sequencing, Ultimate Construction established an off-site layout and storage area behind a nearby parking garage across the street. Panels were then delivered and installed in a tightly controlled sequence to avoid congestion and disruption.

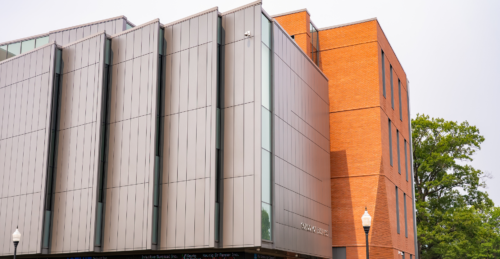

Additional complexity arose when the window manufacturer went out of business mid-project. With window installation delayed, Ultimate Construction adjusted its approach, working from sidewalk access and coordinating closely with the general contractor to maintain progress until the building envelope was ready to receive the rainscreen system. The custom sawtooth corner conditions required careful alignment and mindful installation across multiple elevations. These architectural features demanded strict adherence to tolerances and visual continuity, particularly given the lack of opportunity for corrective field work.
Outcome / Results
Despite tight site constraints, extended lead times, and pandemic-era disruptions, Ultimate Construction completed its scope successfully and in alignment with the project schedule. The work was performed with zero recordable safety incidents, supported by daily job hazard analyses throughout construction.

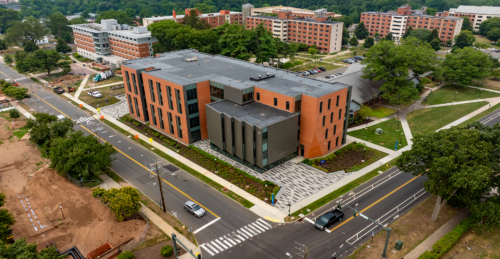

The completed rainscreen system contributes to a highly articulated and award-winning building envelope. The project has since received multiple design recognitions, including AIA Connecticut Design Awards (Merit), AIA Connecticut Sustainable Architecture Awards (Merit), and the 2024 Brick in Architecture Award, reflecting the successful execution of a complex architectural vision.
